2 - The de Broglie Hypothesis

A video of a circle, which has a waveform moving along its perimeter.

Abstract (TL;DR):

Planck, Bohr, Einstein, de Broglie. Four of the most important figures in atomic theory, beginning the Quantum Revolution.

Planck discovered energy quanta, overwriting past physical law. Bohr discovered that light, a form of energy, emanated from atoms whose electrons were dropping from a higher energy state to a lower one, only at distinct levels. Einstein, who had discovered the “photon” around the same time, explained that the connection between the electrons and light was that both existed at distinct states. De Broglie put it all together, saying that electrons, like light, had the behavior of waveforms and particles. This hypothesis, coined the “Matter Wave” hypothesis, has such strong evidence that it is still one of the most accepted atomic theories in existence today.

Circle Wave by Dave Whyte

It’s interesting how the deeper you dive into the atom, the more you find. There really is a whole universe in these atoms. As such, I recommend that you take a look at the previous lesson in the Elemental Flow series in order to really understand where I will be going in this one.

Before I jump right in, I recommend that you actively participate in this lesson. Grab a notepad and pen or use your word processor of choice and take notes. This one is very involved and you may have questions that I encourage you to answer. They will help not only you, but me as well, and you might even inspire another chapter of the storyline.

Without further ado, let’s begin with continuing our conversation on electrons.

The Movement of Electrons

Imagine, for a moment, a situation where there are many electrons surrounding a nucleus. As we previously discussed, Schrödinger created a model where electrons are a certain length and orientation away from the nucleus, yet close enough to experience its attractive force while maintaining a respectable distance away from other electrons – a tough balancing act for sure. With respect to this model, you might expect them orient themselves around a nucleus in any way that reduces their energy.

But why do they move at all? Why would they not just orient themselves in the spots that satisfy those conditions and then simply vibrate in place to get rid of any excess energy that enters their system? On a macroscopic scale, magnets do this: they don’t bounce around – they either snap in place or repel each other.

The reason that electrons can’t just settle is because these, like other microscopic particles, have a hidden second nature that they must abide by.

I imagine that this is an area where most college chemistry professors avoided, much to all of our dismay, because it explains quite a bit about why electrons do what they do. They must have thought that everyone understood beginner level Quantum Mechanics. Common mistake, I suppose (sarcasm). If you’re a part of the 99% that doesn’t know what I’m talking about, strap in. This will probably be a bumpy ride.

Niels Bohr’s Atomic Light Discovery

Quantum mechanics has the capacity to either make you worry about how difficult it is, terrify you about the tenuous nature of the microscopic world, or intrigue you with the numerous tales of the most famous scientists of recent history. Or a combination of the three.

But I believe we should focus on the scientists and their discoveries in our quest for the electron’s “hidden nature”. Let’s begin with Niels Bohr and his model of the atom.

Three concentric circle with a blue arrow pointing outward from the center, which says "increasing energy of orbits". There is a green arrow pointing from middle to inner circle that says "a photon is emitted with energy E = hf".

Image via Universe Today

Shortly after Rutherford’s model, which you saw in the last lesson, Bohr edited the model to be more consistent with his findings.

He noticed that, during the reduction of energy in the electrons, they would release light, or more specifically, a photon (which we will explain shortly).

But, alone, that’s not such a big deal – light is a form of energy and, as we know now, electrons can move between energy levels, both up and down, at any time.

Two spectra of colors, one on top of each other. The top is continuous, similar to a rainbow, stretching from blue light to the left to red on the right. The bottom shows individual colors (purple, blue, cyan, green, and red).

Image by Dmitry Karpenko & Vahe Ganapetyan via Reef Leo Lab

Continuous, like a rainbow, on the top, but discrete, individual colors, on the bottom.

But, in his experiments, Bohr noticed individual colors coming from the electrons when he measured the system, leading Bohr to think that they must be at an exact distance away from the nucleus and each other. In quantum mechanical terms, these electrons are quantized, meaning that they only exist at discrete, or distinct, energy levels.

If the electrons could truly be anywhere around the nucleus, Bohr would have seen the full, continuous visible spectrum of colors, like what you see in a rainbow, when their energy reduced.

When higher-energy electrons decrease in energy level, they go to another exact distance from the nucleus that is lower than the one they were. The transition to lower orbits creates a specific color of light, according to the energy of that color of light. We will discuss more about the physics of light when we go deeper into the types of light and its properties (such as wavelength), but, for now, note that red light is the lowest energy light we can see, while violet light is the highest energy.

Science As A Process

As reasonable as these discoveries seem, science isn’t always so easy to get right the first time, no matter how many years one has spent on the topic. Important lesson. There are several problems with Bohr’s model.

First, electrons do not just infinitely continue to expand outward from the nucleus according to their energy state. You might imagine that if it gets too far away, it would just break free of the attractive electric force of the nucleus. That is absolutely true, and there is such a concept called a “free electron”, which is defined as just that.

Secondly, Bohr thought that electrons are traveling on an orbit like planets around a star, making the model two-dimensional. Think about that for a moment. Space as we know it exists in three-dimensions. Any atomic model must consider that electrons can end up in more than just the horizontal and vertical plane.

But that’s not all. He explains that the electrons exist at discrete levels due to quantization of the electromagnetic field that these electrons reside within (theorized by James Clerk Maxwell, who we will discuss in time). But this is incomplete. Why is the electromagnetic field quantized? The electrons are certainly not doing it themselves.

In actuality, an electromagnetic field can only be quantized with the inclusion of discrete energy. That makes sense, right? If quantization is existence at specific energy levels, then there must be something putting the electromagnetic field at those specific energy levels. Energy must be conserved (it cannot be created or destroyed). Electrons can't just generate that energy on their own.

It would be Bohr’s rival and friend who would discover the right answer - the famed Albert Einstein.

Albert Einstein’s Quantum Theory of Light

Einstein made a name for himself by publishing a set of papers that included a discovery of the photon. The photon is defined as light’s quantum, or the discrete and fundamental unit of energy of light. Einstein found that this quantum had no rest mass, meaning that, when the photon is not in motion (at rest), it has no mass. That mind-blowing discovery revolutionized physics for good.

It is the existence of these discrete energy packets interacting with the electrons, which generate an electromagnetic field, that creates discrete electromagnetic fields. Whenever an electron moves to a lower energy level, as previously stated, it gives off these photons and you see the light energy that represents one discrete level subtracted by the lower one.

To be more specific, for example, if an electron exists at energy level 5, and it wishes to move down, it must move to 4, as 4 is a specific value. When it does move to 4, it gives off the color of light equivalent to an energy level of 1 (5 - 4 = 1), which is why you see only one color. If the electron was moving to level 3, the photon would have an energy level of 2 (5 - 3 = 2), and you would see a different color, and so on. It's too bad that Bohr didn't believe in the existence of photons, isn't it?

Nevertheless, it was odd that an electron mirrored the photon in that it behaved as though it was quantized. Why would an electron, a particle with mass, share qualities with a photon, a particle without mass? Perhaps there were more similarities between these particles than just this?

Isaac Newton’s Prism

A man holding a prism to a pinhole through the door. Light spreads out on a white sheet into a rainbow of colors with red at the top, followed by orange, then yellow, green, blue, and violet.

Image drawn by John Adam Houston

Light has been debated long before Einstein and Bohr, at least since the times of the legendary Sir Isaac Newton. Despite his own experiment of splitting light into its seven colors with a prism (yes, that was him), Newton believed that it was a particle because of how light created clear shadows.

See? Even great scientists can miss things. You’ll remember that the only reason that we get the rainbow of colors is due to refraction.

The kicker is that particles do not refract. Only waves do.

Experiments done over hundreds of years following Newton have yielded similar results. The most notable experiments were done by James Clerk Maxwell in the 1800s, who developed a set of equations for electromagnetic waves that we still use to this day. They influenced Bohr's explanation for his model. Of course, Einstein would rebel in the early 1900s and move on to experimentally prove that light was not only a wave, but also a particle.

So light is massless, and behaves like waves and particles. It’s crazy to insist that an electron could be similar, right?

Louis de Broglie’s Wave Hypothesis

Louis de Broglie, a scientist of France, didn’t think so. He saw where Bohr’s experiments left him and, unsatisfied with his model, tried to take it a step further theorizing that microscopic particles with mass also behaved like waves.

Using the aforementioned equations of Maxwell and Einstein’s discovery of the dual nature of light, de Broglie was set to make history. He knew that, as a charged particle, an electron would likely be under the influence of both an electric field and a magnetic field making their wave pattern electromagnetic. Electromagnetic waves, are defined as oscillations, or regular movements back and forth (like a pendulum), that are caused by both electric and magnetic fields.

Remember that equation we talked about in the last part – Coulomb’s Law? It defined the electrostatic “power” of charged particles. The relationship between particles, whether they were attracted to or repulsed by each other, would create an electric field!

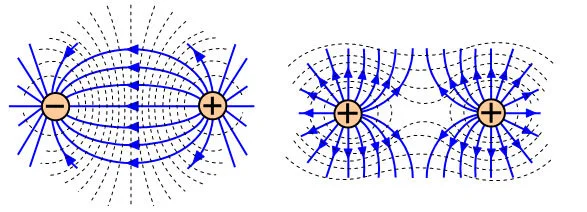

Two diagrams. On the left, several blue arrows point from a proton at right to an electron at left. On the right, there are two protons which have arrows pointing away from each other.

Image via Splung

The strength of the field from any individual charge is determined by the strength of that charge.

Magnetic fields are created, simply, whenever charges move.

An electron and the magnetic field it creates. The electron is represented by a red sphere, which is traveling along a blue circle with an arrow pointing in a counterclockwise direction. Many gray arrows point upward that indicate a magnetic field.

Image via School Physics

Beautiful Curves

With this knowledge, de Broglie only needed to validate his theory by comparing it to Bohr’s findings while improving upon them to eliminate the previously-mentioned shortcomings in Bohr’s model.

Fortunately, it is theoretically easy to do all three. Bohr found that the electrons must be in defined orbits – otherwise they would not be exhibiting discrete energy in the form of photons when they went from a higher to a lower energy state. That means electrons must exist such that their orbits are uninterrupted and stable. We define waves that are constant and not under any interference standing waves. The electrons must also be in phase with their orbits, meaning that they stay on a consistent path over time.

This is what that looks like:

One circle in the middle of the image (labeled n=1), surrounded by two circular waveforms (labeled n=2 and n=3).

Image via HyperPhysics

The frequency of the waves, or how many humps there are, is purely determined by how much energy the electrons have. In fact, the only possible way that one can have an exact orbit as more and more electrons are added is if the electrons are at an energy level that allows them to be a standing wave. If electrons were to become excited and the energy used to excite them was not enough to bring them to a standing wave, it would not move to a higher energy state.

Also, notice that n = 1 looks exactly like Bohr’s model, a simple circular orbit. Bohr’s model was only correct for the case where there is only one electron present – the hydrogen atom!

Lastly, wrapping it up nicely, the waves from this model move into three dimensions, supplanting the limited 2D model of Bohr.

A video of a single waveform oscillating up and down along a circle.

Image by Andrew D. Hwang via StackExchange

This is how electrons move, creating the wave-particle duality of all things composed of microscopic particles. We know that electrons are absurdly fast, as well, so, by observation, we can never know where on the path electrons are at any time. This is what ultimately inspired Schrödinger to create the electron cloud model that we use today. Despite the messiness of that model, electrons on it are moving in these same wave-like patterns. Schrödinger’s concern, unlike de Broglie’s, was to create a mathematical model to figure out the probability of finding an electron in a certain position, which he was successful in doing, beginning orbital theory.

At an atomic level, your body is behaving like both a wave and a particle. I hope that doesn’t keep you up at night. If it does, just stare at this image that is strikingly similar to the above model. It might just calm you down.

A video of four circular waveforms, each sharing a central point. The waveforms are represented in white dots on a black background.

Image via Pinterest
